Brand Name : P+F
Model Number : KFA6-SR2-Ex2.W
Certification : PTB 00 ATEX 2081
Place of Origin : Germany
MOQ : 1 piece
Price : negotiable
Payment Terms : T/T
Supply Ability : 100pcs per month
Delivery Time : on request
Packaging Details : standard carton packing
Signal type : Digital Input
Supply Connection : terminals 14, 15
Safety Integrity Level (SIL) : SIL 2
Degree of protection : IEC 60529:2001
Display elements : LEDs
Electromagnetic compatibility : NE 21:2006
Ambient temperature : -20 ... 60 °C (-4 ... 140 °F)
Dimensions : 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
2-channel isolated barrier, 230 V AC supply, Dry contact or NAMUR inputs, Relay contact output, Line fault detection (LFD), Reversible mode of operation, Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511, Housing width: 20 mm, Number of channels: 2-channel, Safety Integrity Level (SIL): SIL 2, Rated voltage: 207 ... 253 V AC, 45 ... 65 Hz, Field device: NAMUR sensor, Field device [2]: volt-free contact, Line fault detection, Type: 2 x relay (change-over contact), Reversible mode of operation
Technical Data
| General specifications | ||
|---|---|---|
| Signal type | Digital Input | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 2 | |
| Supply | ||
| Connection | terminals 14, 15 | |
| Rated voltage | 207 ... 253 V AC, 45 ... 65 Hz | |
| Power dissipation | 1.2 W | |
| Power consumption | max. 1.3 W | |
| Input | ||
| Connection side | field side | |
| Connection | terminals 1+, 2+, 3-; 4+, 5+, 6- | |
| Rated values | acc. to EN 60947-5-6 (NAMUR) | |
| Open circuit voltage/short-circuit current | approx. 8 V DC / approx. 8 mA | |
| Switching point/switching hysteresis | 1.2 ... 2.1 mA / approx. 0.2 mA | |
| Line fault detection | breakage I ≤ 0.1 mA , short-circuit I > 6 mA | |
| Pulse/Pause ratio | min. 20 ms / min. 20 ms | |
| Output | ||
| Connection side | control side | |
| Connection | output I: terminals 7, 8, 9 ; output II: terminals 10, 11, 12 | |
| Output I, II | signal ; relay | |
| Contact loading | 253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load | |
| Energized/De-energized delay | approx. 20 ms / approx. 20 ms | |
| Mechanical life | 107 switching cycles | |
| Transfer characteristics | ||
| Switching frequency | ≤ 10 Hz | |
| Galvanic isolation | ||
| Input/Output | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff | |
| Input/power supply | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff | |
| Output/power supply | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff | |
| Output/Output | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff | |
| Indicators/settings | ||
| Display elements | LEDs | |
| Labeling | space for labeling at the front | |
| Directive conformity | ||
| Electromagnetic compatibility |
| |
|
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Low voltage |
| |
|
| Directive 2014/35/EU | EN 61010-1:2010 |
| Conformity | ||
| Electromagnetic compatibility | NE 21:2006 | |
| Degree of protection | IEC 60529:2001 | |
| Input | EN 60947-5-6:2000 | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | screw terminals | |
| Mass | approx. 150 g | |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2 | |
|
| Height | 119 mm |
|
| Width | 20 mm |
|
| Depth | 115 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 | |
| Data for application in connection with hazardous areas | ||
| EU-type examination certificate | PTB 00 ATEX 2081 | |
|
| Marking |
|
|
| Input | Ex ia |
|
| Voltage | 10.6 V |
|
| Current | 19.1 mA |
|
| Power | 51 mW (linear characteristic) |
| Supply |
| |
|
| Maximum safe voltage | 253 V AC (Attention! Um is no rated voltage.) |
| Output |
| |
|
| Contact loading | 253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load |
|
| Maximum safe voltage | 253 V AC (Attention! The rated voltage can be lower.) |
| Galvanic isolation |
| |
|
| Input/input | not available |
|
| Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
|
| Input/power supply | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity |
| |
|
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 |
| International approvals | ||
| FM approval |
| |
|
| Control drawing | 116-0035 |
| UL approval |
| |
|
| Control drawing | 116-0145 |
| CSA approval |
| |
|
| Control drawing | 116-0047 |
| IECEx approval |
| |
|
| IECEx certificate | IECEx PTB 11.0031 |
|
| IECEx marking | [Ex ia Ga] IIC |
Related Models:
| KFU8-UFT | KFD0-CS-Ex1.51P |
| K-HM26-2M-261533 | KFD0-CS-Ex2.50P |
| NBB15-U1-E2 | KFD0-CS-Ex2.51P |
| NBB1,5-5GM25-E2 | KFD0-RO-Ex2 |
| NBB1,5-5GM25-E2-V3 | KFD0-SCS-Ex1.55 |
| NBB1,5-F79-E0 | KFD0-SD2-Ex2.1045 |
| NBB1,5-F79-E2 | KFD0-SD2-Ex2.1245 |
| NBB15-U1-Z2 | KFD0-TR-Ex1 |
| NBB5-18GM50-E2-V1 | KFD0-CC-1 |
| NBB15-30GM30-E2-V1 | KFD0-HMS-16 |
| NBB15-30GM50-A2-V1 | KFD0-RSH-1.4S.PS2 |
| NBB15-30GM50-E2 | KFD0-SD2-EX1.10100 |
| NBB15-30GM50-E2-M | KFD0-SD2-EX1.1045 |
| NBB15-30GM50-E2-V1 | KFD2-UT2-1 |
| NBB15-30GM50-E2-V1-M | KFD2-CD-1.32 |
| NBB8-18GM30-E2 | KFD2-CD-EX1.32 |
| NBB8-18GM30-E2-V1 | KFD2-HMM-16 |
| NBB8-18GM60-A2-V1 | KFD2-SH-EX1.T |
| NJ4-12GK-SN | KFD2-UT2-1 |
| NJ5-18GK-N | KFD2-VR4-EX1.26 |
| NJ5-18GK-N-150 | KFU8-UFC-1.D |
| NJ5-18GM-N | V15-G-2M |
| NJ8-18GK-N | Z 787 |
| RD0-FB-EX4 | Z787.H |
| RD0-TI-Ex8.FF.* | HIC2031 |
| Z787.F | Z787.H.F |



|
|

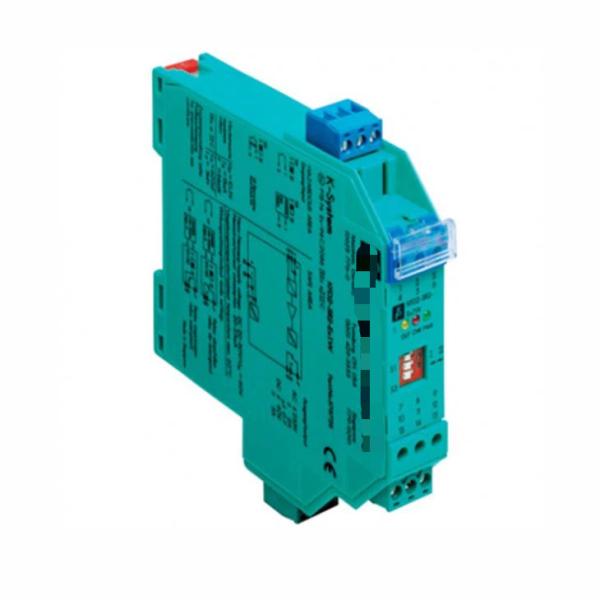

KFA6-SR2-Ex2.W Switch Amplifier SIL 2 P+F Sensors Digital Input Images |
